Description
HADES Hybrid Gen2 · USA 416 SS · Law-enforcement tuned
HADES Gen2. Hybrid brake. Gas stays forward.

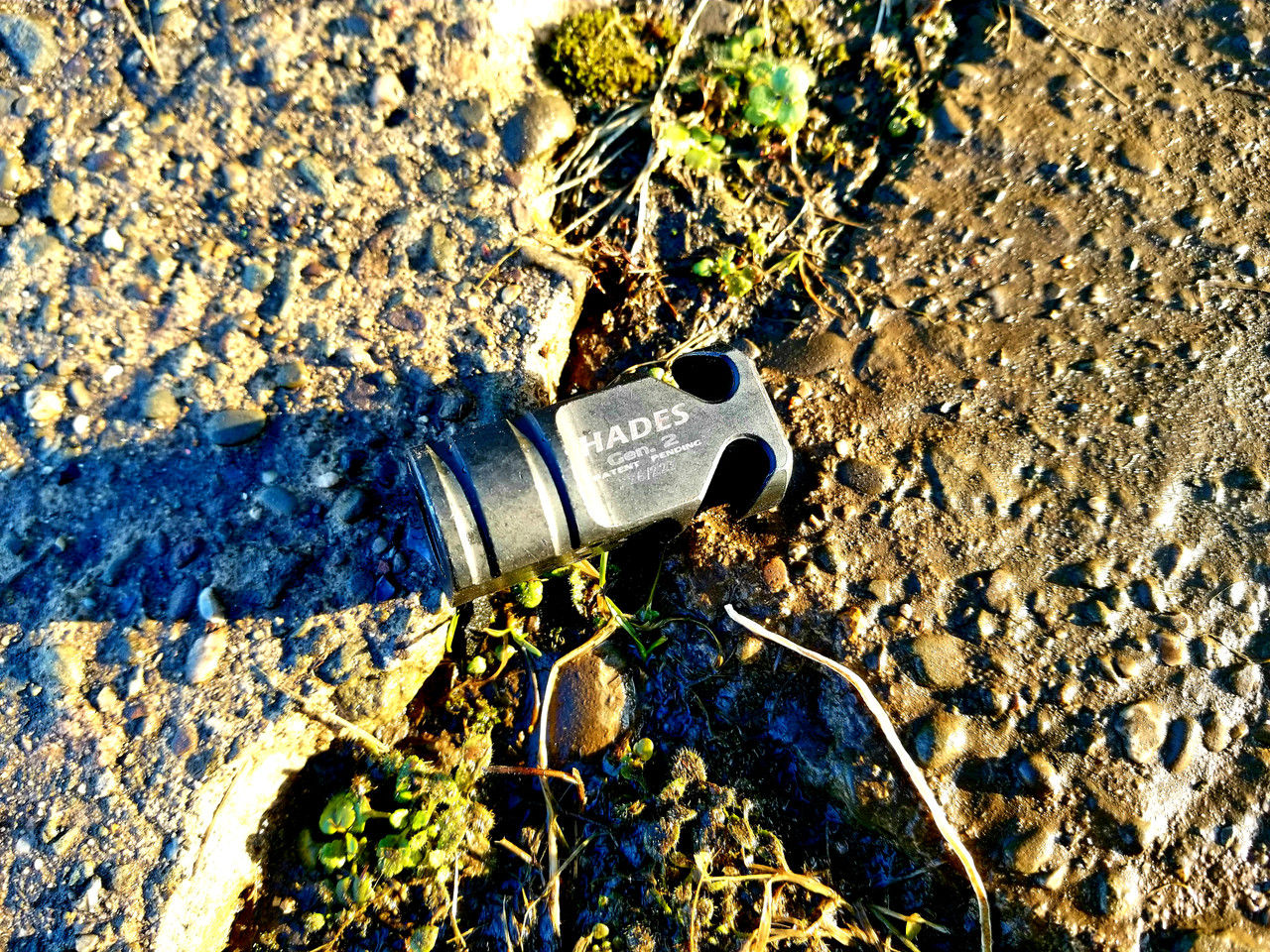

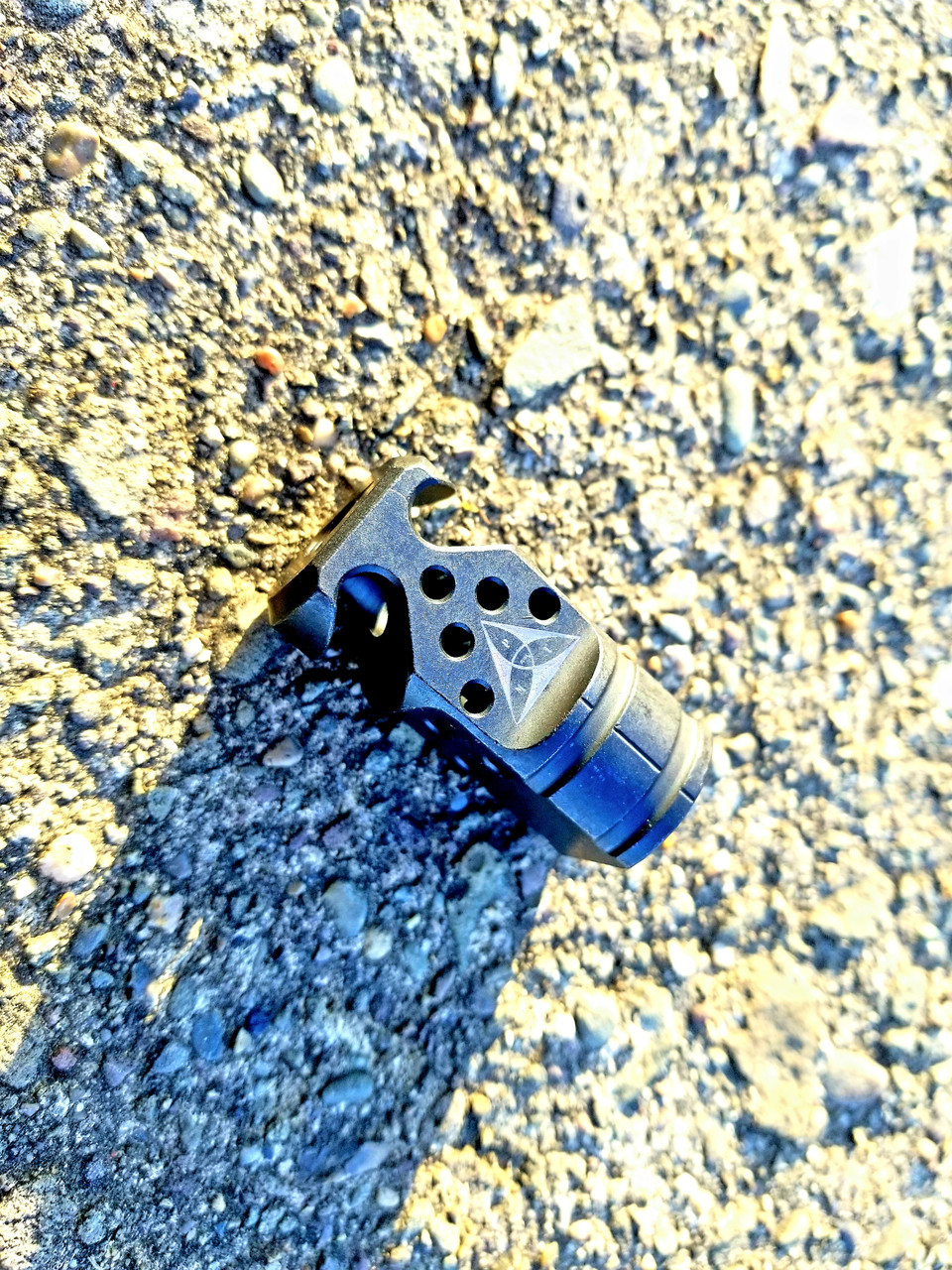

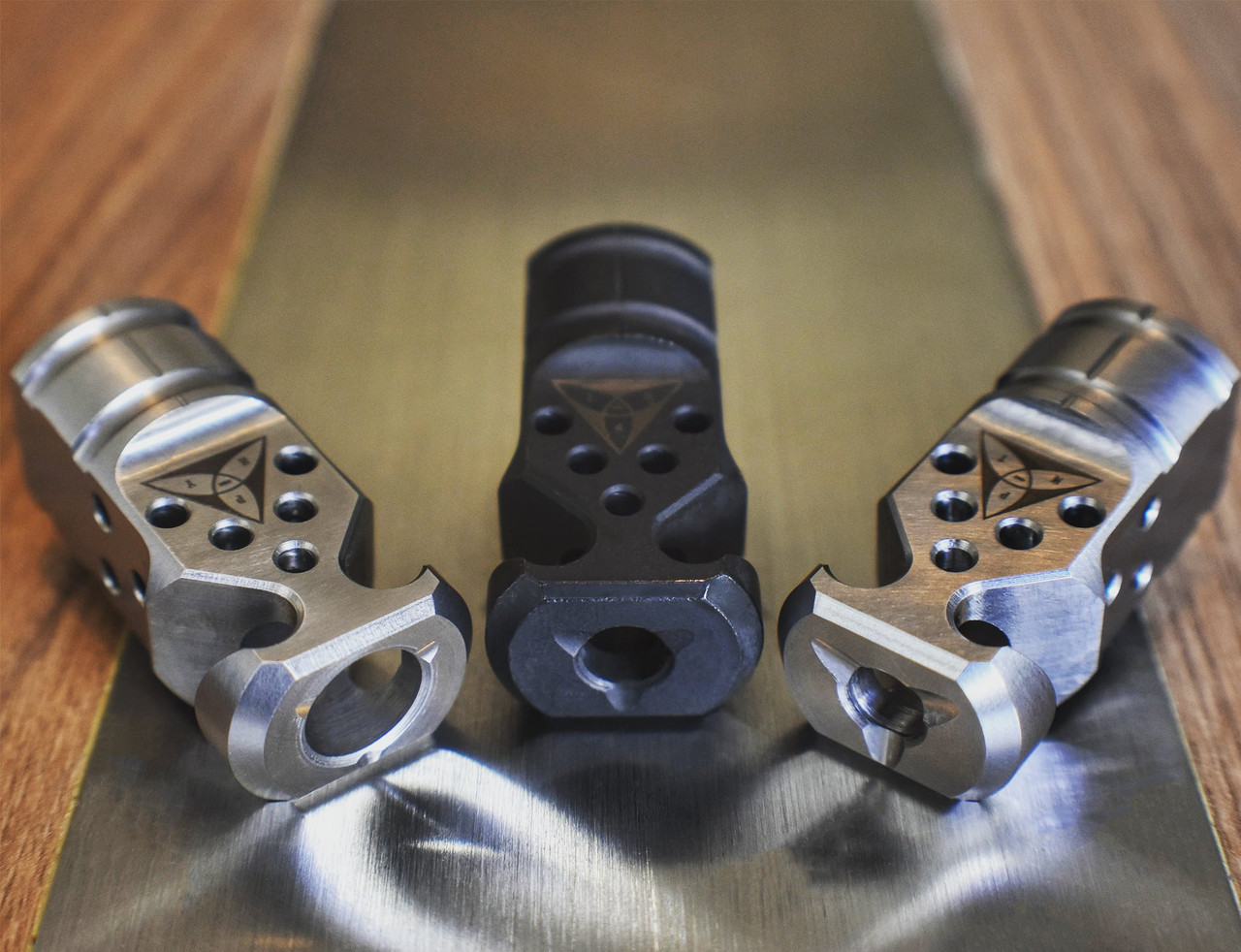

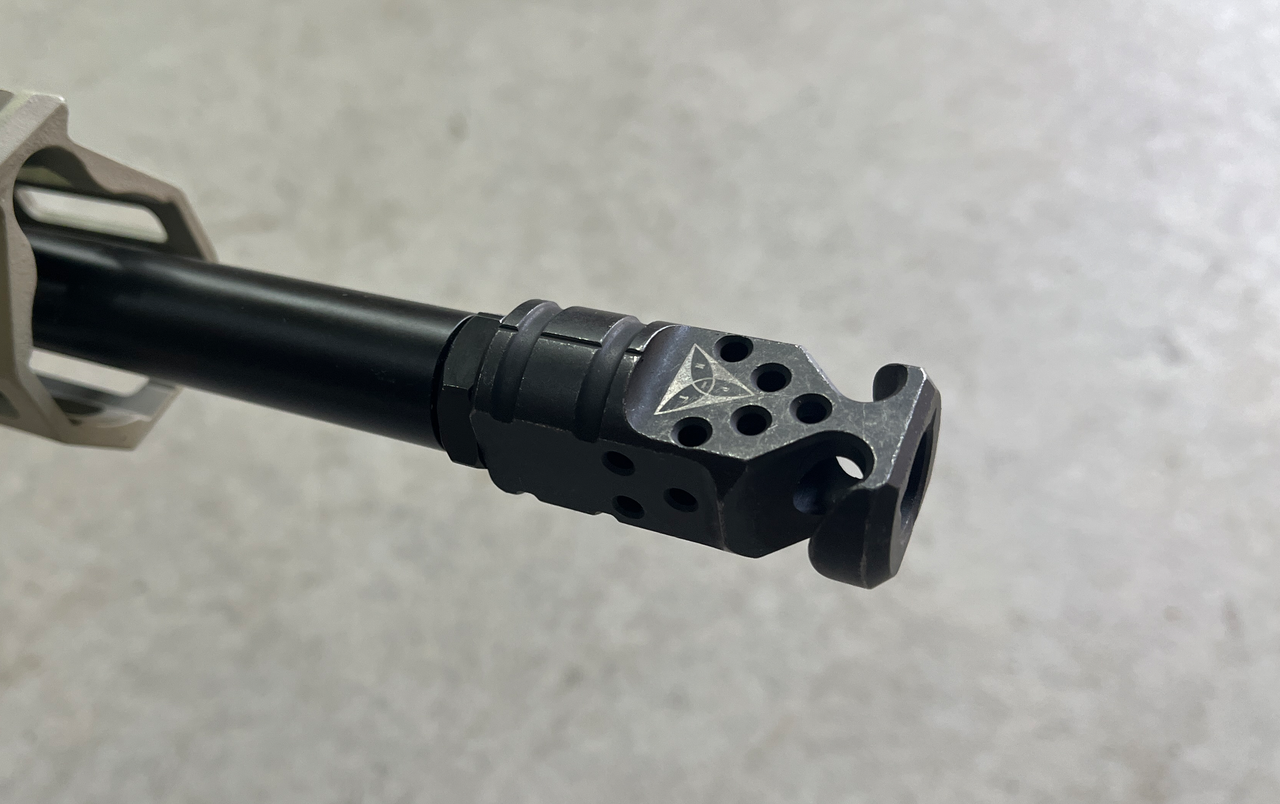

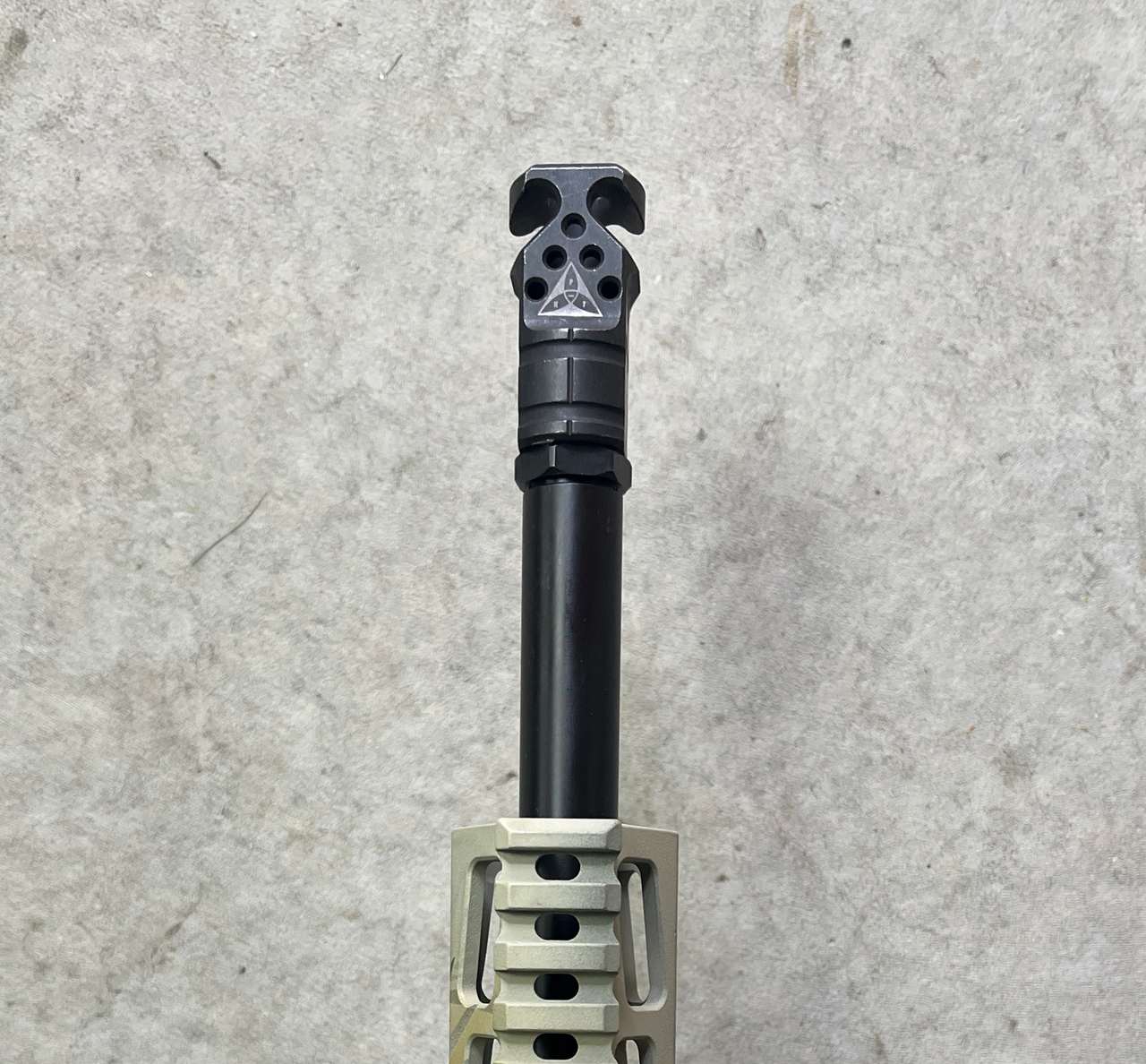

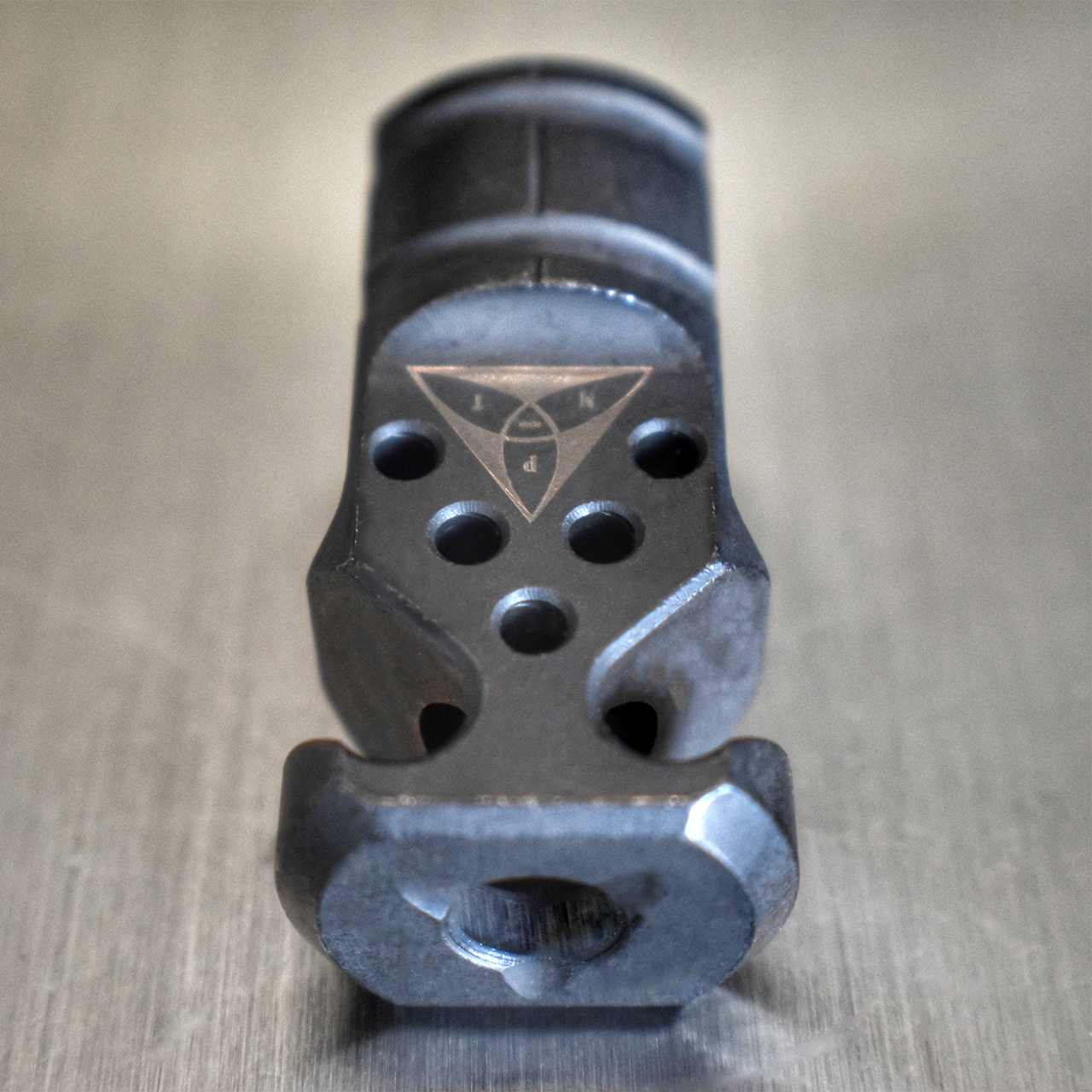

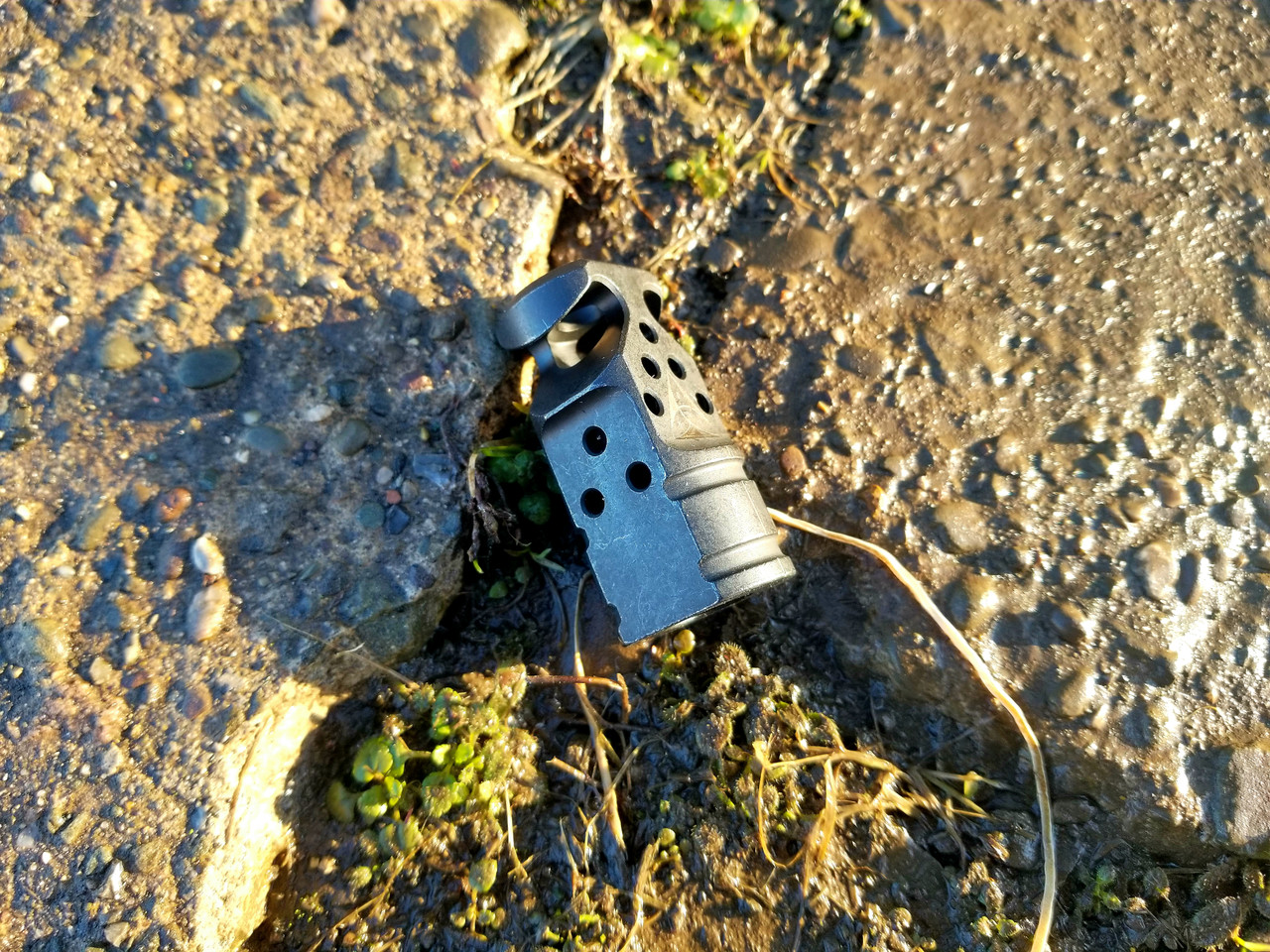

HADES Hybrid Gen2 is PAMAX’s in-house muzzle device: a true hybrid brake/compensator machined in the USA from locally sourced 416 stainless. Gen2 keeps the Gen1 pressure geometry and adds three 90-degree ports on each side so peak gas dumps perpendicular to the bore instead of back at the shooter.
Product Overview
Peak pressure first
The added side ports pressurize at peak PSI and redirect rearward gas away from the operator. Built for high-pressure 7.62 duty cycles.
Aggressive pitch
Angled faces force gas to keep the muzzle forward and cut the plume past the shooter’s shoulders. Downforce, not just side blast.
Flash chamber
Larger interior expansion chamber plus the .350? through-bore vents excess gas through vertical and offset channels tuned to cut flash on 16?+ barrels.
Sustained fire
Compensation increases under rapid semi, burst, and full-auto. Designed for LE and military applications, priced for a working rifle.
Specifications
| Spec | HADES Hybrid Gen2 |
|---|---|
| Function | Hybrid muzzle brake / compensator |
| Material | 416 stainless steel, USA |
| Through-bore | .360? enhanced inner diameter |
| Gas control | Vertical + offset channels; six added 90° side ports vs Gen1 |
| Common threads | 5/8×24 |
| Origin | Designed and machined by PAMAX Tactical |
Confirm thread pitch and bore before install. Pin-and-weld service is listed separately when a 14.5? barrel must make 16?.
Keegan Pree –
Built countless AR platform 350 Legends for local deer hunters and this brake is on every one of them. Eliminates almost all recoil, not bad on the ears at all like you’d get from most big brakes, gas deflects around the shooter nicely, and of course it’s esthetically pleasing.
Tim Riggs –
This is probably the best 30 caliber brake i have ever used in a small package. Using it on my .350 legend AR. Barely any muzzle movement at all!! Great accuracy!
Thank you!
Tiim Riggs
