Description
Low Impact Ordnance Non-Lethal · Made in the USA

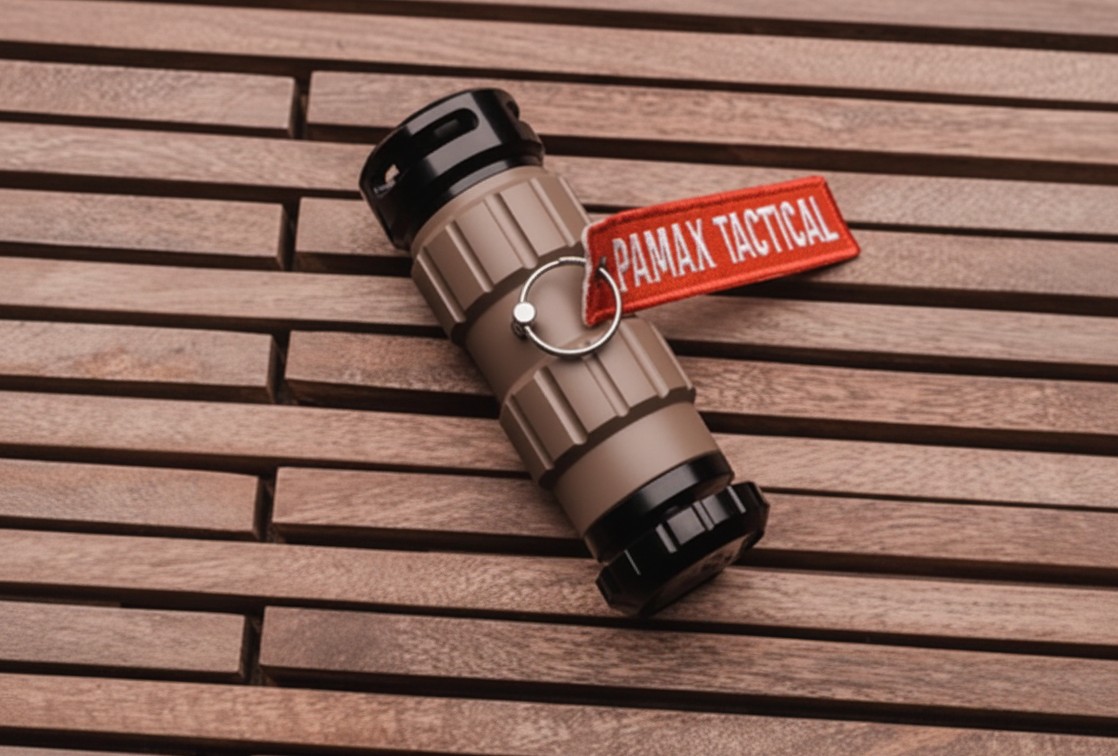

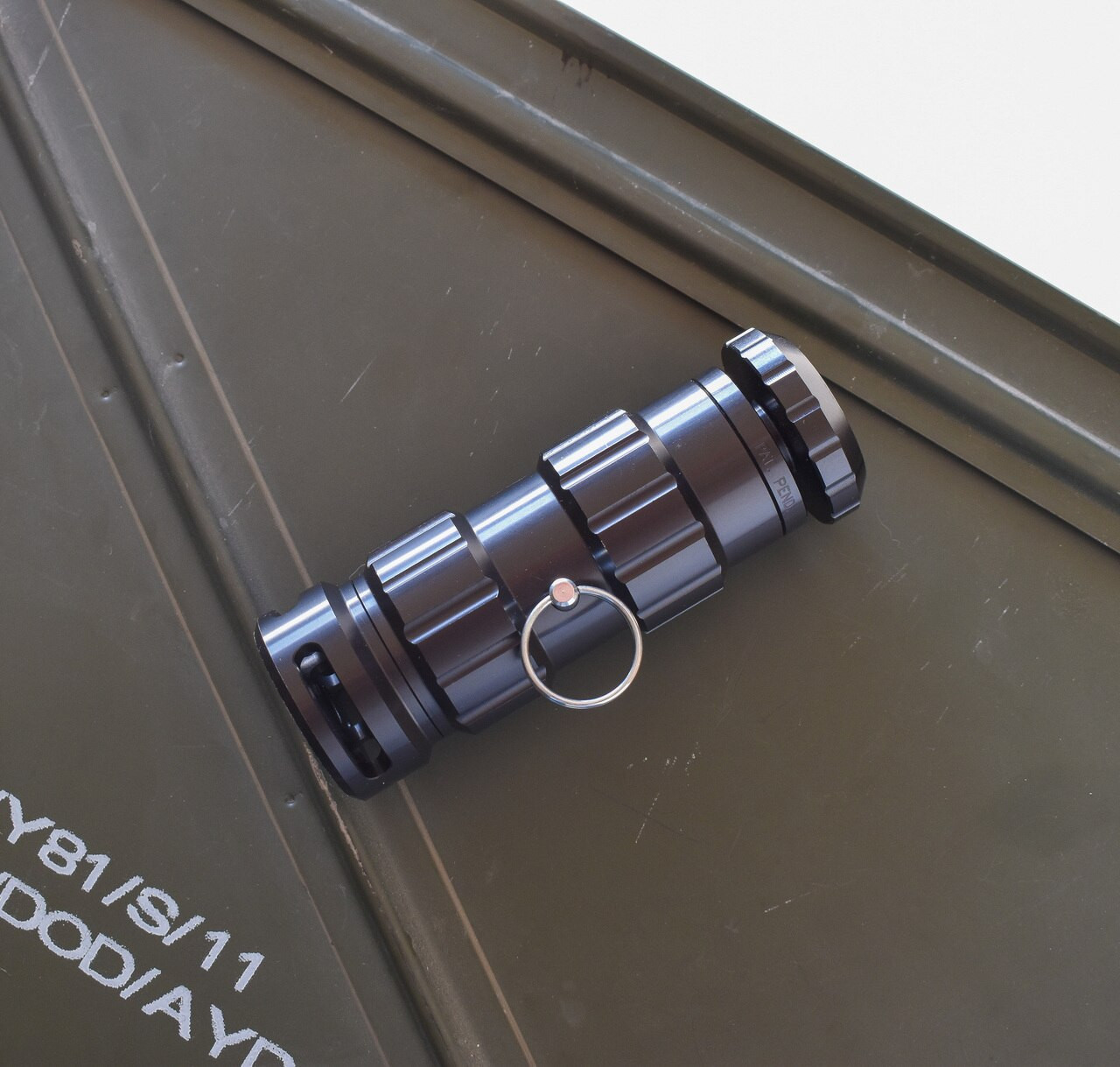

L.I.O.N. V1. Impact-actuated. 540°.
The L.I.O.N. (Low Impact Ordnance Non-Lethal) is a premium blank firing device engineered for professional training and tactical simulation. Proudly manufactured in the USA and precision-machined from aerospace-grade aluminum and 416 stainless steel—the same high-performance materials used throughout the PAMAX firearm-component line.
Before you buy
Review the PAMAX Liability Waiver & Terms of Use before purchasing this product. Use only approved blank cartridges listed below. Never attempt to load live ammunition. Use of unapproved blanks, live ammunition, or modifying blanks or the device is prohibited and voids all warranty coverage.
Product Overview
Proprietary engineering is built for durability and function in realistic training scenarios. The V1 is impact-actuated. Removing the pull-pin safety makes the device live for a throw; it will not function on a timer and will not detonate without force acting on it.
Pull-pin safety
Removing the pull-pin safety activates the device for being thrown. It stays inert until force acts on it. Manual shaking by a person is not enough force to detonate.
Multi-caliber base
.209 primer for indoor work. Approved 9mm blanks or B12 mini when output needs to come up.
Training materials
CNC aluminum and 416 stainless—the same stock used on PAMAX firearm components.
PAMAX warranty
Backed by the PAMAX warranty. Multiple Cerakote colors for unit ID in the field.
Applications
Designed for military, law enforcement, and civilian training programs. The L.I.O.N. V1 is a safe, cost-effective way to add a realistic diversionary element to tactical exercises and simulation events.
Operation
This is an impact-actuated device, not a timed fuze. Removing the pull-pin safety makes the unit live for a throw. It will not go off on its own and will not detonate without force acting on it. Manual shaking generated by a person is not enough force to detonate. Detonation is specified through 540 degrees of impact. The multi-caliber design accepts .209 shotgun primers for indoor training and approved 9mm blanks for enhanced outdoor performance.
The device uses a dual-trigger system. No manual reset is required before or after each use.
Primary — inertial firing pin
An inertial firing-pin mechanism uses impact to actuate the device. It does not require a manual reset before or after each use.
Secondary — top-mounted plunger
A top-mounted plunger delivers direct impact into the firing mechanism for higher detonation rates on soft surfaces. When the unit tumbles on a soft surface, the plunger can depress and set the device off.
Specifications
| Spec | L.I.O.N. V1 |
|---|---|
| Construction | CNC-machined aluminum & 416 stainless steel |
| Caliber options | .209 primer, 9mm blank, B12 mini |
| Dimensions | 1.975″ W × 5.62″ H |
| Weight | 1 lb 6 oz |
| Activation | Impact-actuated; pull-pin safety arms the unit for a throw. 540° impact detonation. Not a timed device. |
| Trigger system | Dual trigger: inertial firing pin + top-mounted plunger |
| Finish | Multiple Cerakote colors available |
| Warranty | Backed by PAMAX Warranty |
| Origin | Manufactured in the USA |

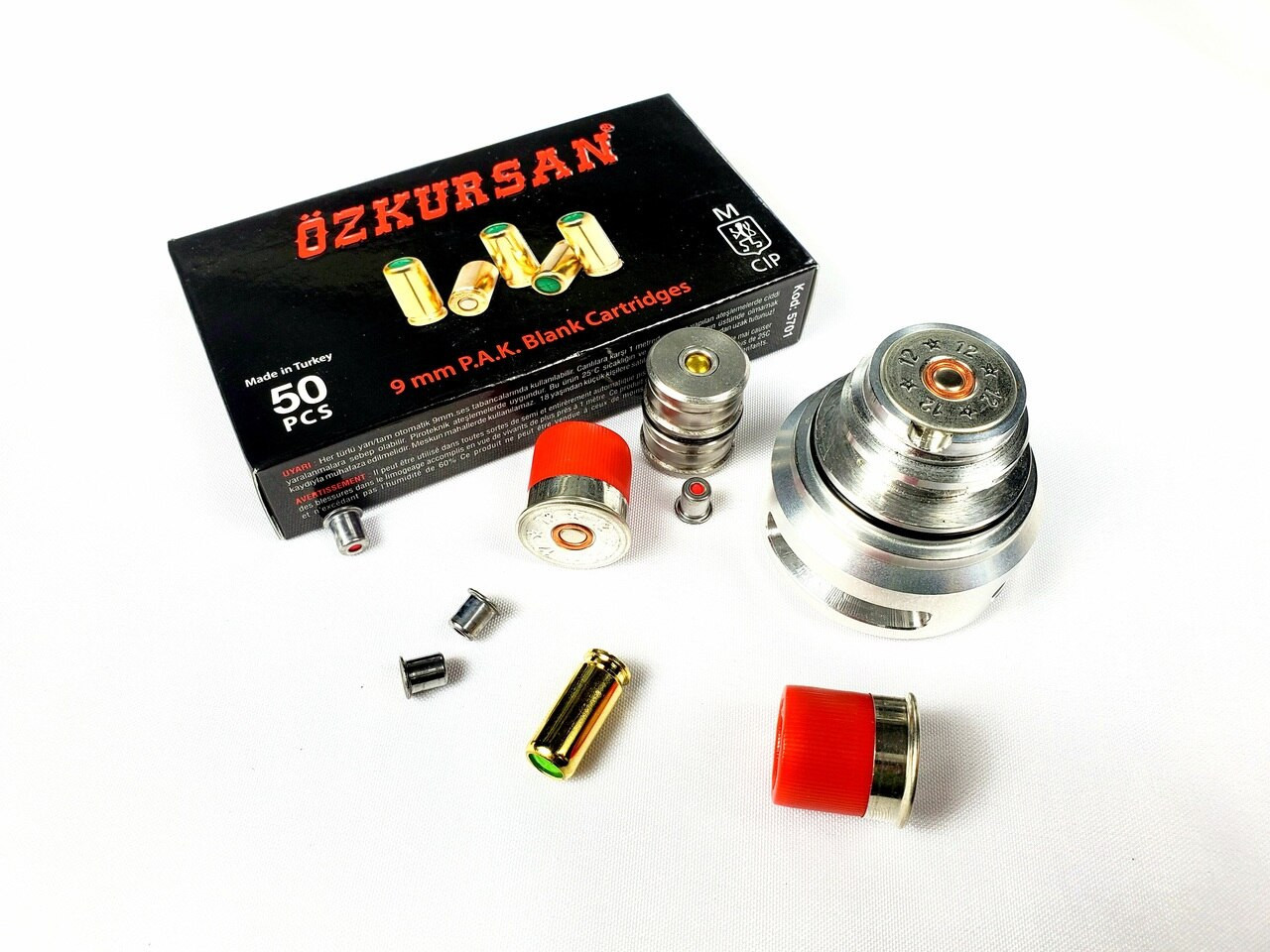

Approved Ammunition
Safety notice
Use only approved blank cartridges listed below. Never attempt to load live ammunition. Use of unapproved blanks, live ammunition, or modifying blanks or the device is prohibited and voids all warranty coverage.
| Load | Approved use | Output | Notes |
|---|---|---|---|
| .209 shotgun primer | Any standard .209 primer used in 12-gauge shotshell reloading | 115 dB | Indoor training. Moderate sound output. |
| 9mm blank | Ozkursan polymer-tipped blank cartridges only | ~140 dB | Metal-crimped blanks are prohibited due to shrapnel risk and improper fit. |
| B12 mini | B12 mini blank, 1″ overall length | 155+ dB | Louder than approved 9mm. Specified with no paper wadding to reduce fire hazard. |
