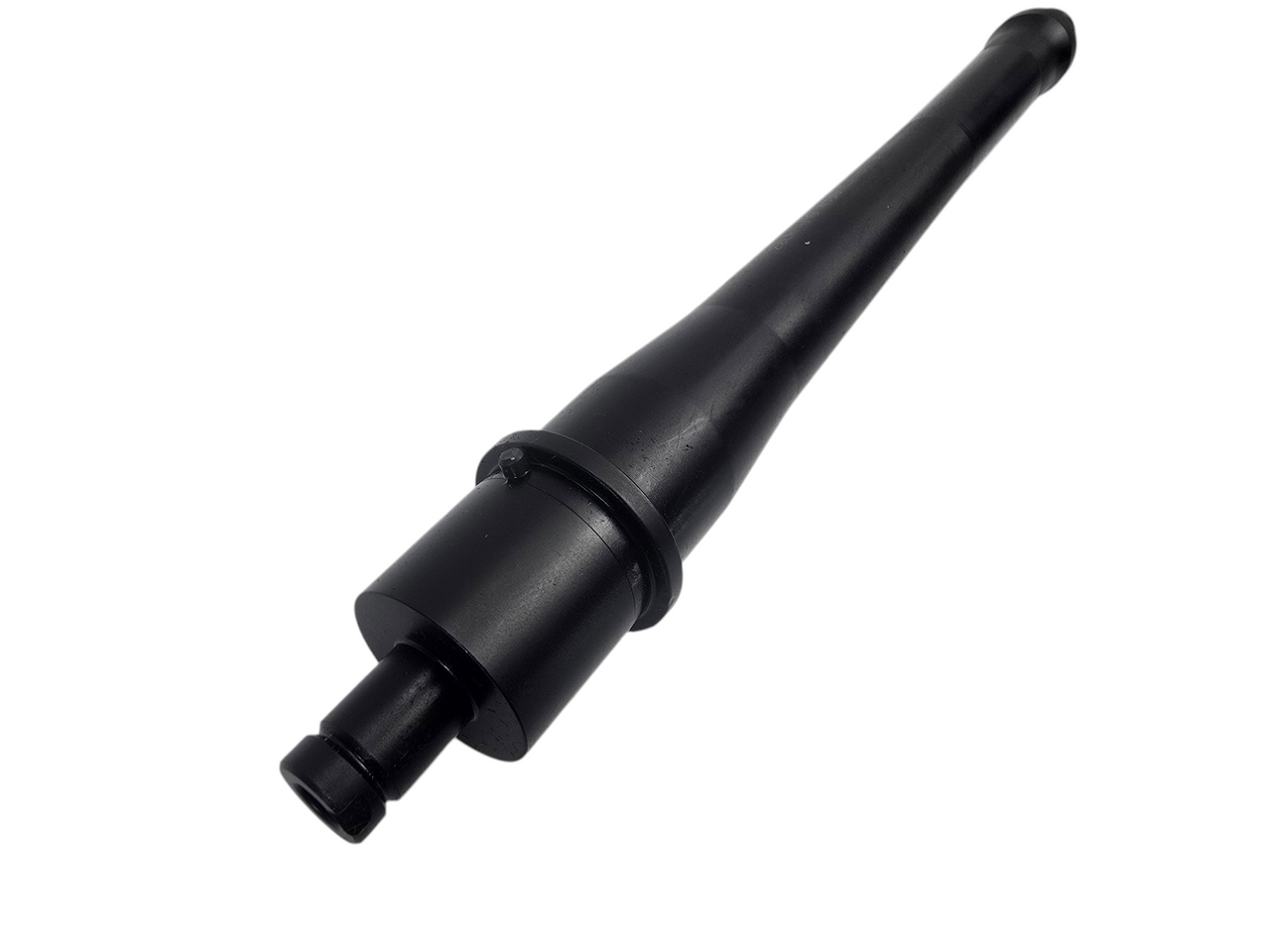

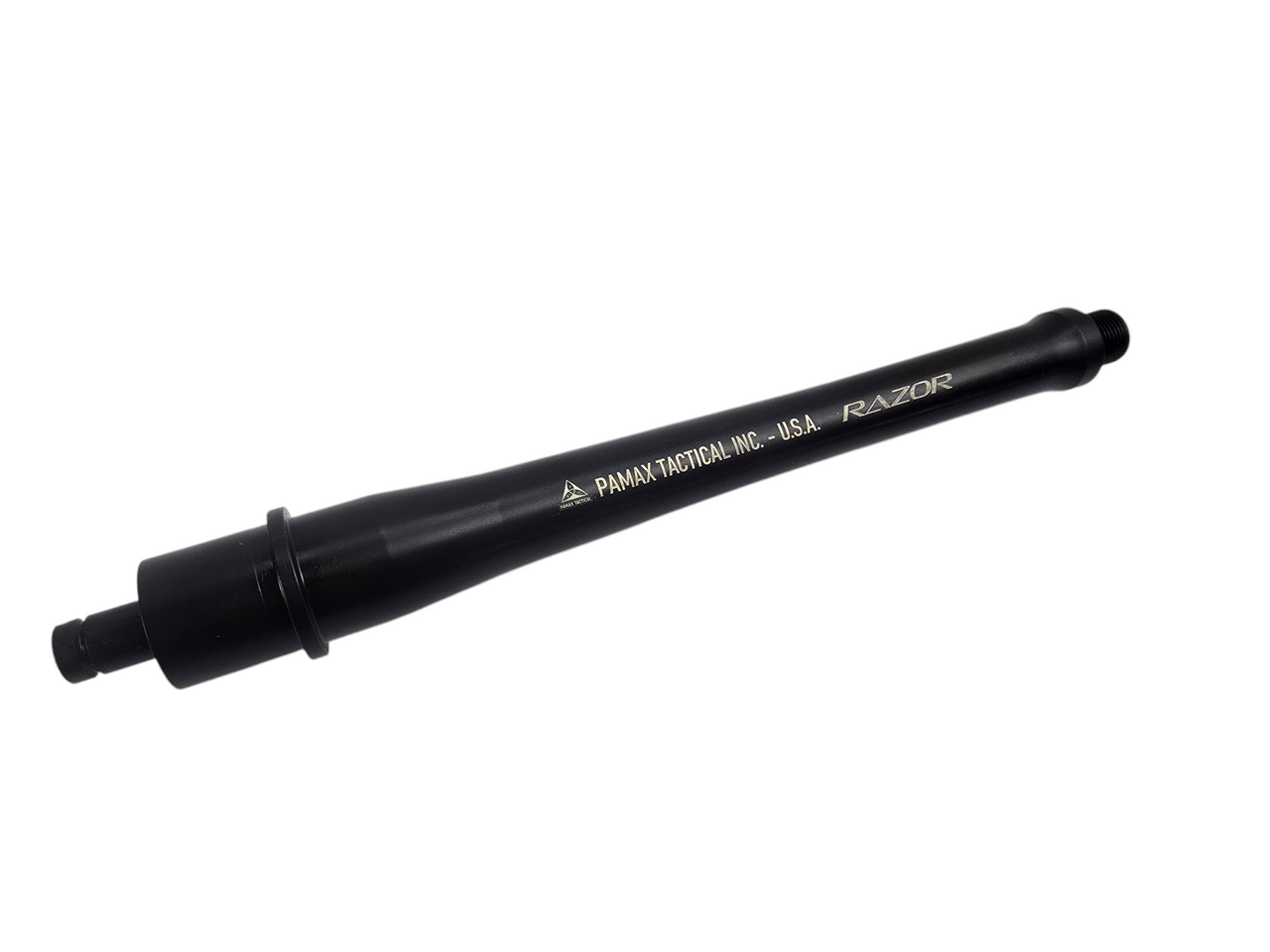

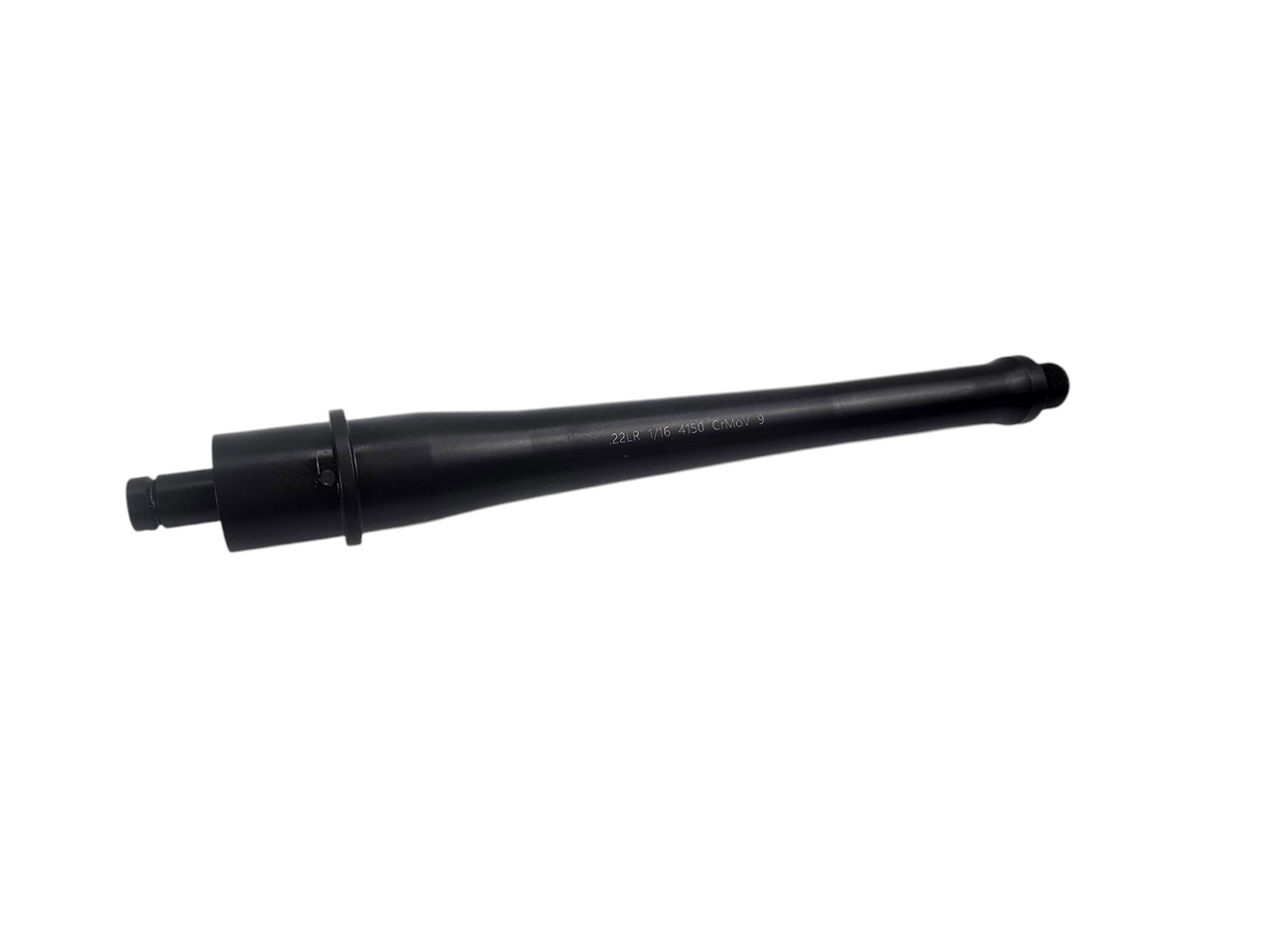

Razor · SKU 22LR-9P-16-M4-NM · 9? .22 LR · 1:16 nitride
9? .22 LR. 1:16. Dedicated conversion barrel.
RAZOR 9? .22 LR, 1:16 twist, 4150 CMV, black nitride, 1/2-28. Produced in house in Florida from raw bar stock: drill, ream, rifle, contour, and assemble on a fully automated, robotic-driven line. Stress-relieved after rifling. Quality control holds every bore inside its individual tolerance. 100% USA made. Dedicated .22 LR conversion barrel — not a 5.56 chamber.
Dedicated .22 LR chamber
This is not a 5.56 barrel. Pair with a .22 LR conversion BCG and magazine. 9? is pistol or SBR length on an AR lower.
Product Overview
Dedicated .22 LR
Chamber and twist are cut for .22 Long Rifle. Keeps lead out of a 5.56 bore.
1:16 twist
Standard .22 LR rifling. Threaded 1/2-28. M4 extension.
In-house QC
Produced in house in Florida from raw bar stock: drill, ream, rifle, contour, and assemble on a fully automated, robotic-driven line. Stress-relieved after rifling. Quality control holds every bore inside its individual tolerance. 100% USA made.
Longer conversion tube
9? gives the conversion more velocity than the 4.5? PDW cut (22LR-5P-16-M4-NM).
Specifications
| Component | Specification |
|---|---|
| SKU | 22LR-9P-16-M4-NM |
| Platform | AR-15 conversion |
| Length | 9? |
| Material | 4150 CMV Mil-B-11595E |
| Finish | Black nitride |
| Chamber | .22 LR |
| Twist | 1:16 right-hand |
| Muzzle thread | 1/2-28 |
| Barrel extension | M4, torqued after nitride |
| Origin | 100% USA made |
Dedicated .22 LR only. Listing did not publish weight or gas-system length. NFA rules apply under 16? .
