Description

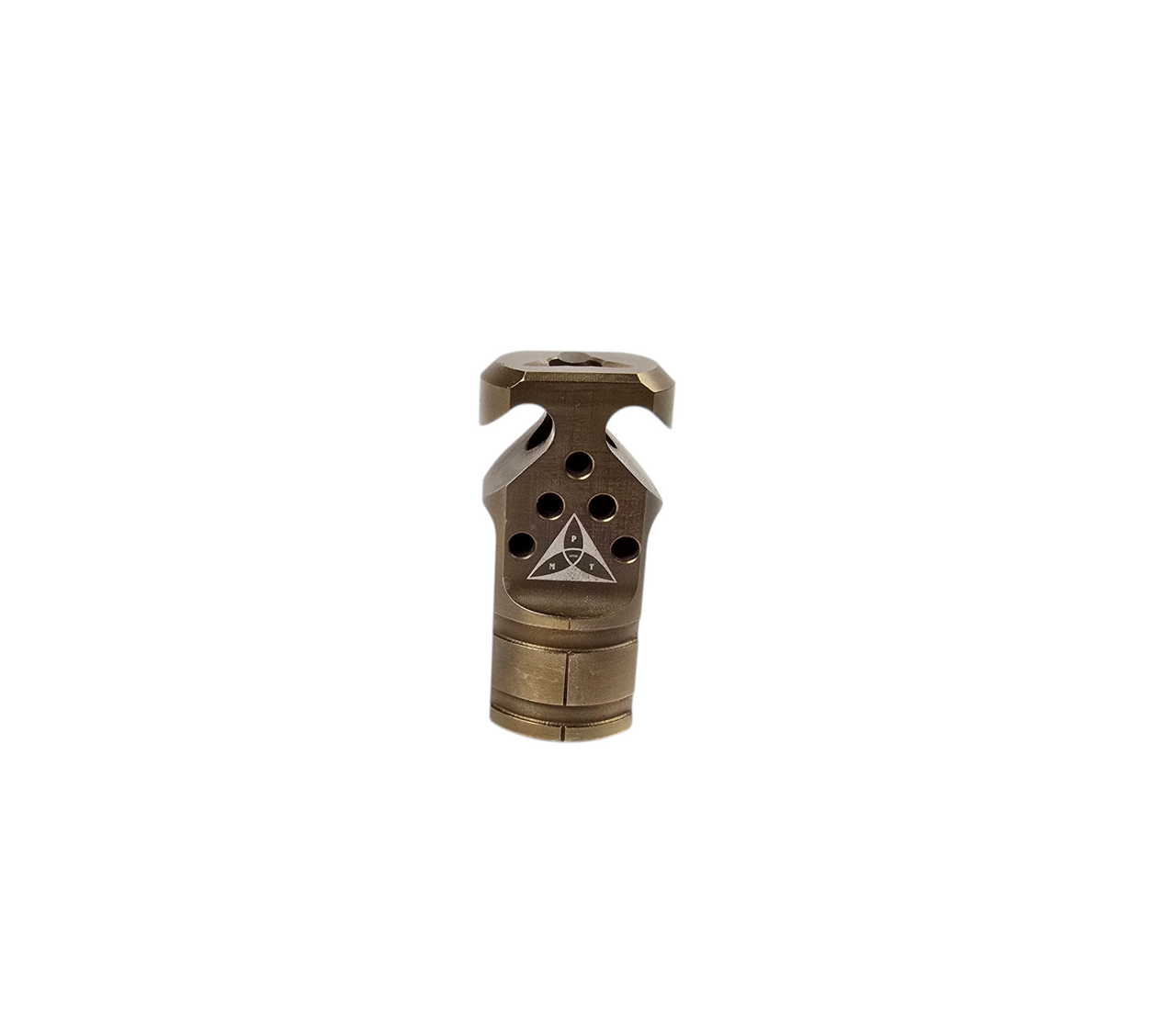

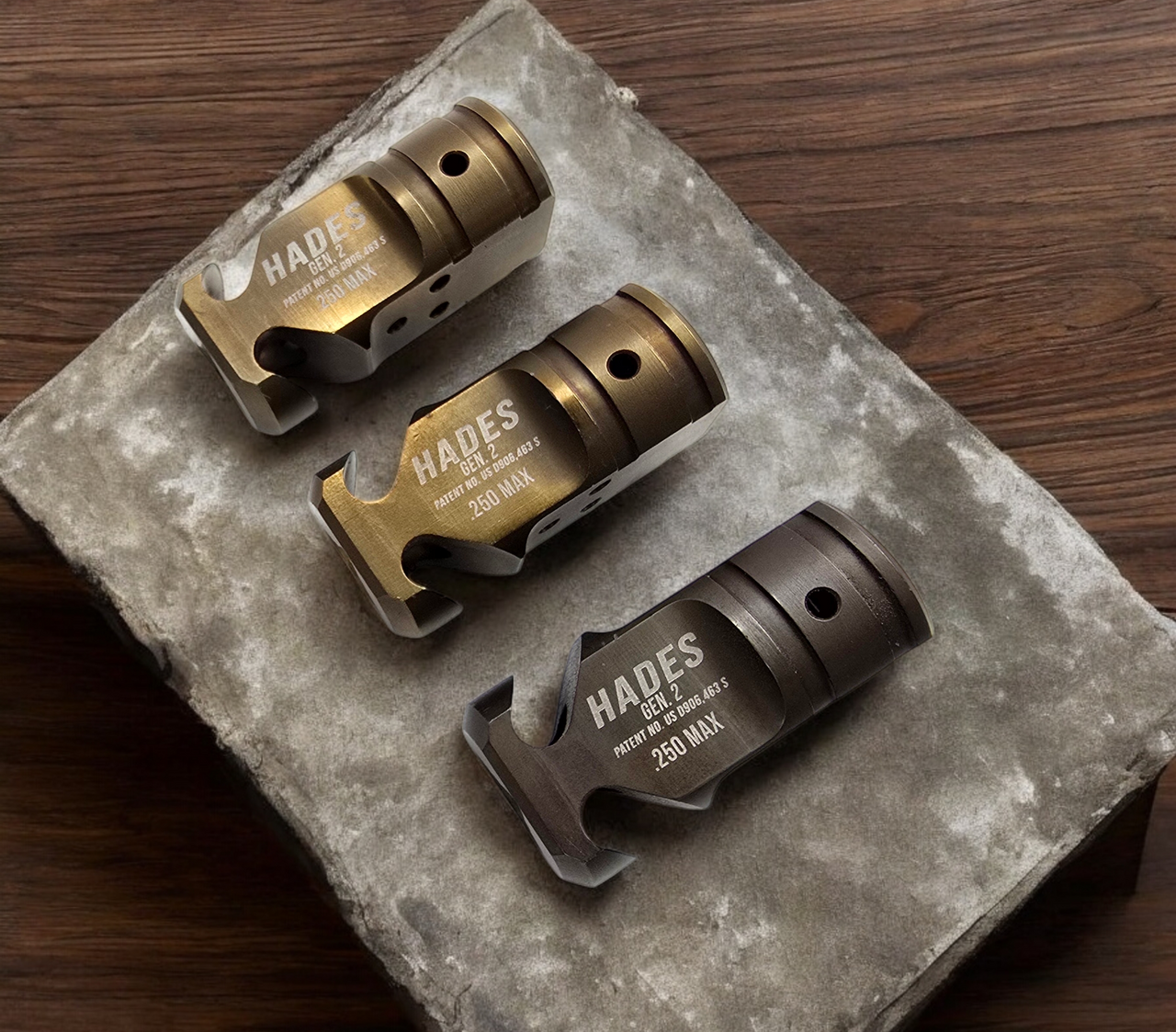

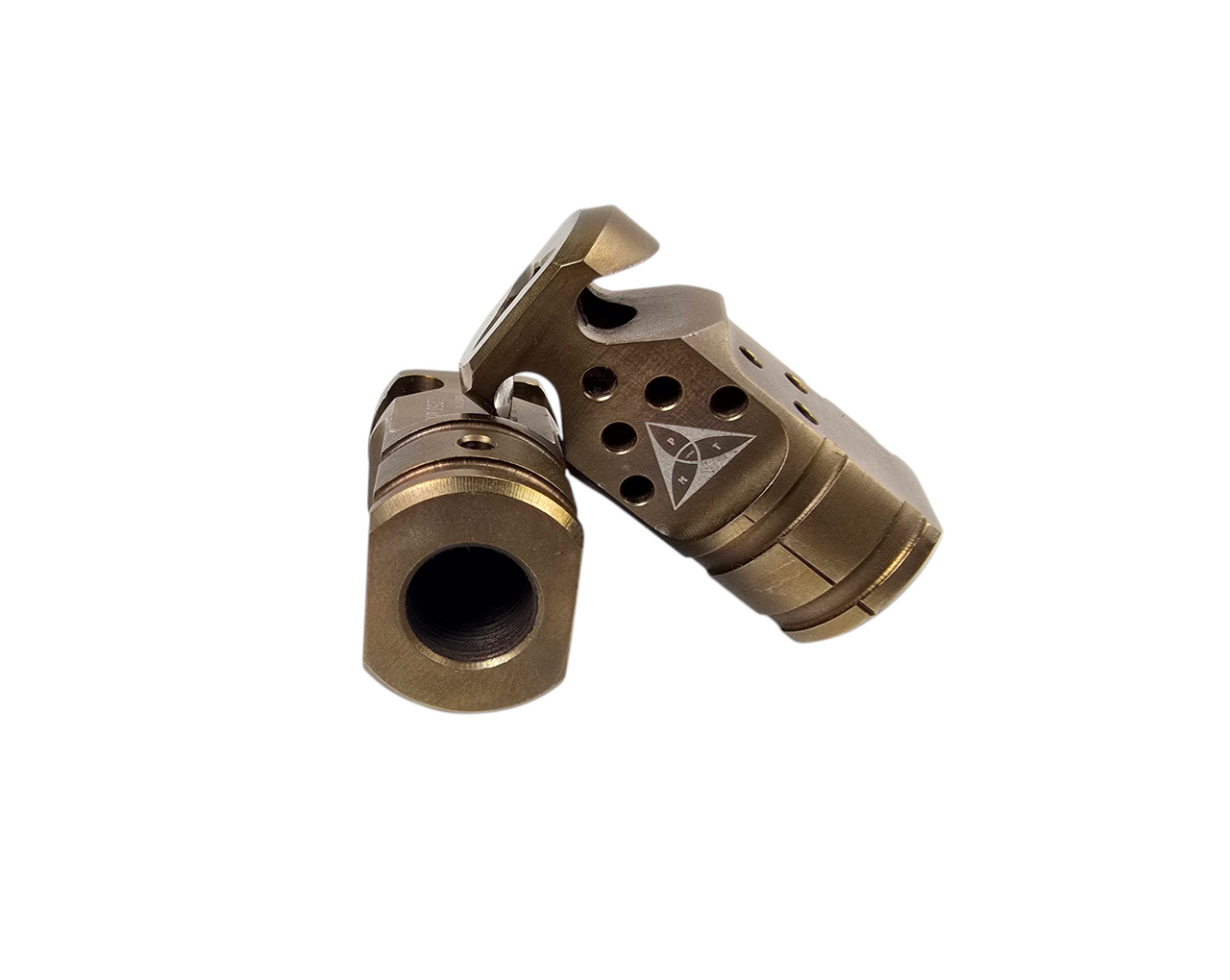

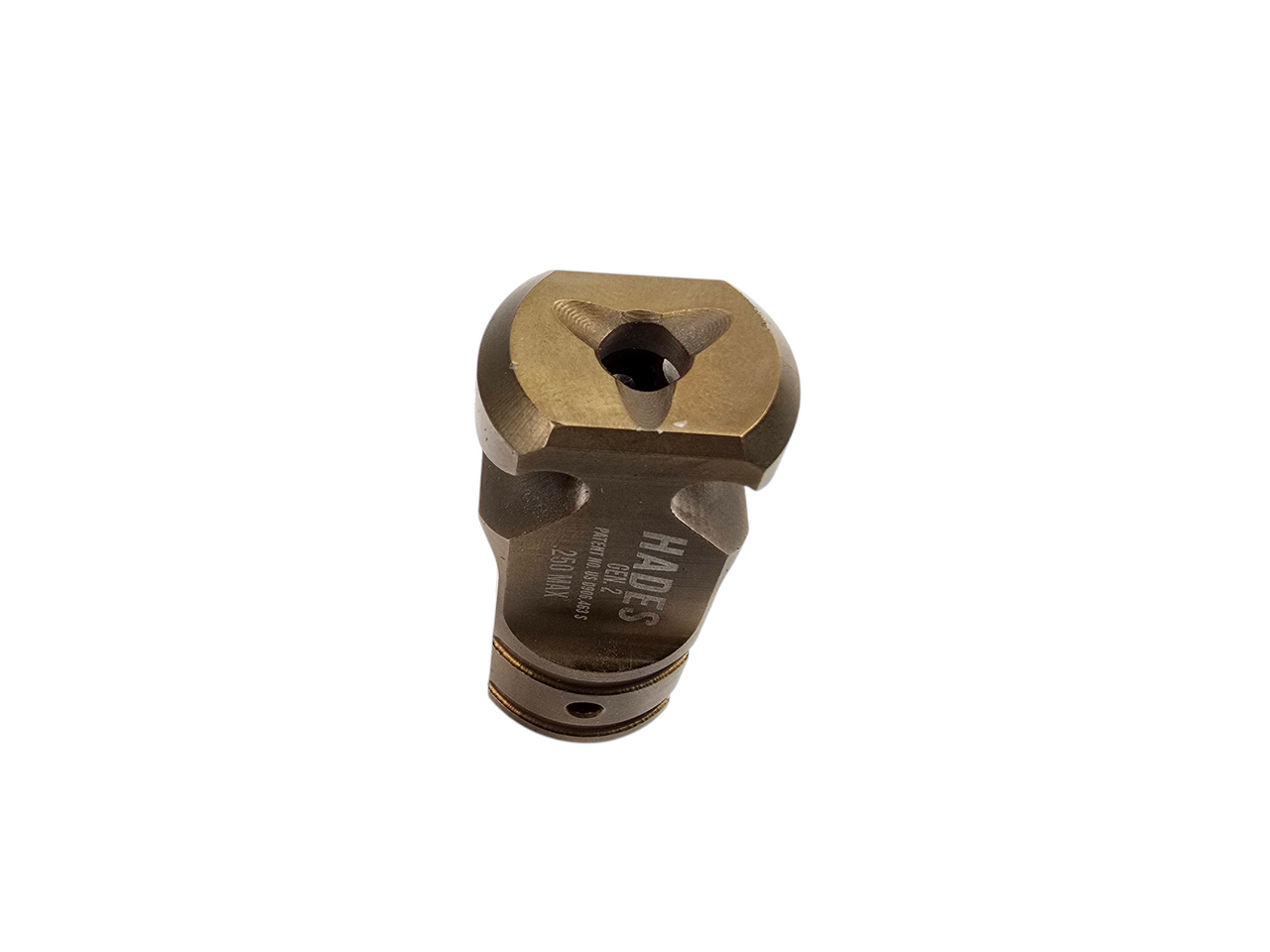

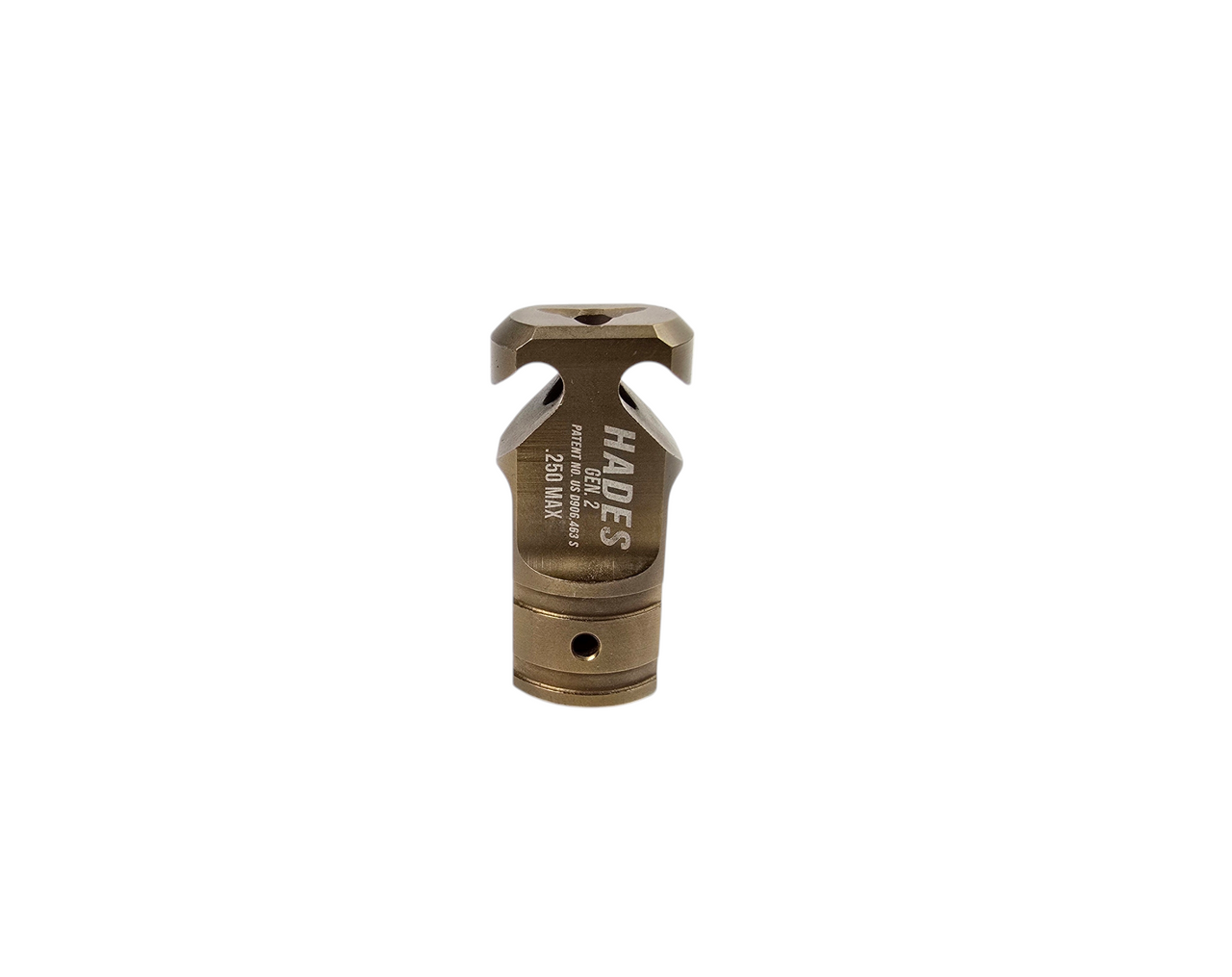

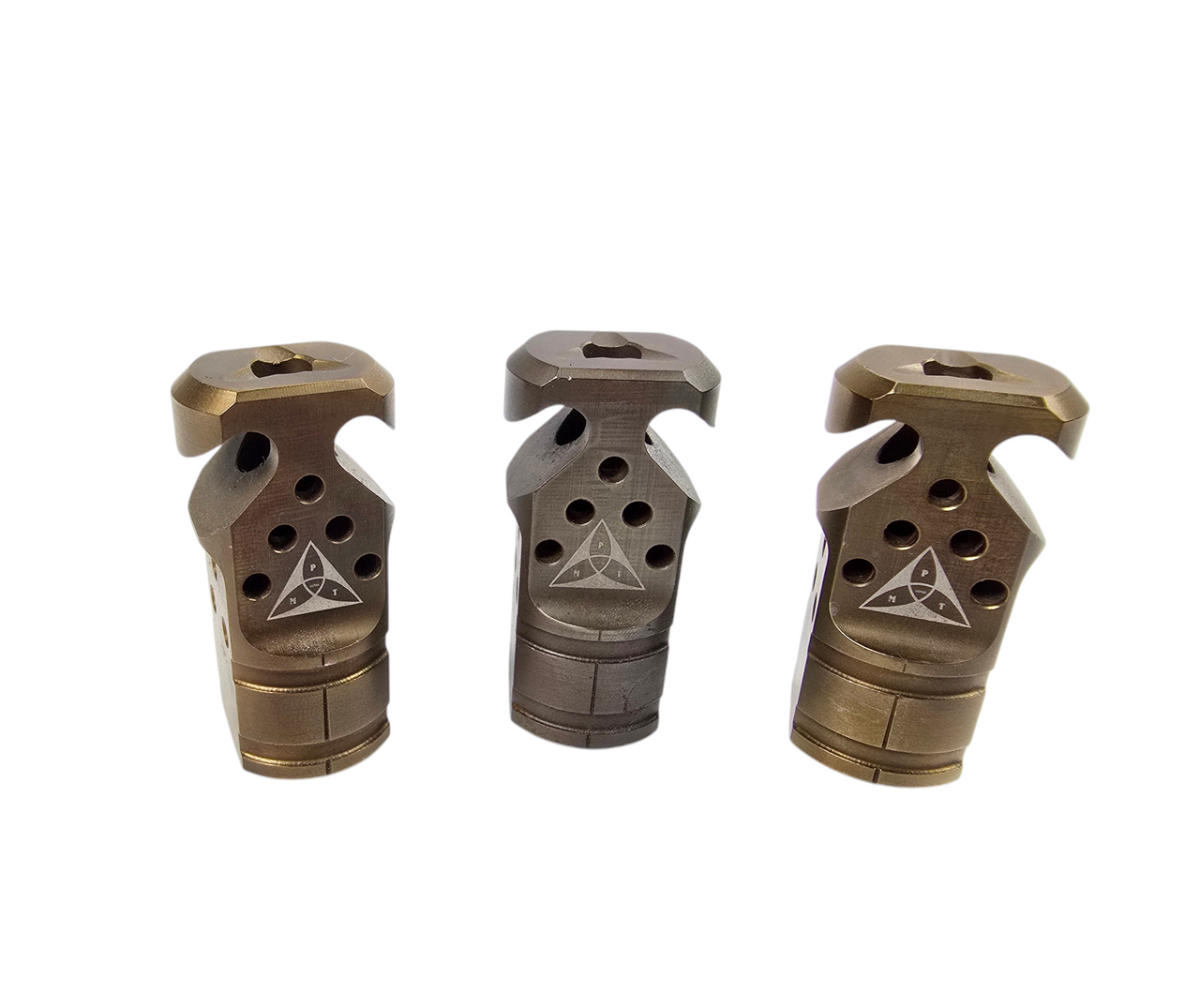

HADES Hybrid Gen2 · USA 416 SS · Law-enforcement tuned
HADES Gen2. Hybrid brake. Gas stays forward.
HADES Hybrid Gen2 is PAMAX’s in-house muzzle device: a true hybrid brake/compensator machined in the USA from locally sourced 416 stainless. Gen2 keeps the Gen1 pressure geometry and adds three 90-degree ports on each side so peak gas dumps perpendicular to the bore instead of back at the shooter.
Product Overview
Peak pressure first
The added side ports pressurize at peak PSI and redirect rearward gas away from the operator. Built for high-pressure 5.56 duty cycles.
Aggressive pitch
Angled faces force gas to keep the muzzle forward and cut the plume past the shooter’s shoulders. Downforce, not just side blast.
Flash chamber
Larger interior expansion chamber plus the through-bore vents excess gas through vertical and offset channels tuned to cut flash on 16?+ barrels.
Sustained fire
Compensation increases under rapid semi, burst, and full-auto. Designed for LE and military applications, priced for a working rifle.
Specifications
| Spec | HADES Hybrid Gen2 |
|---|---|
| Function | Hybrid muzzle brake / compensator |
| Material | 416 stainless steel, USA |
| Through-bore | 5.56 enhanced inner diameter |
| Gas control | Vertical + offset channels; six added 90° side ports vs Gen1 |
| Common threads | 1/2×28 |
| Origin | Designed and machined by PAMAX Tactical |
Confirm thread pitch and bore before install. Pin-and-weld service is listed separately when a 14.5? barrel must make 16?.
